Mixing up variable types in 1 model

lbui

Can we mix both quantitative variables and categorical variables in a multiple regression model? For example: default_rate = SAT_avg + ownership? R lets us run this but is it a valid method?

A student tried doing a polynomial regression with both quantitative variables and converted the categorical variable into factor: default_rate = poly(SAT_avg, 2) + factor(ownership). Is this ok? Would ownership as a factor not have quantitative value?

dylarm

This is absolutely fine! R kind of converts categorical variables into factors when doing regression on its own, but explicitly doing it using factor() just means you have a bit more control over it. And while the representation of a factor in a data frame is a number, in a regression it becomes a binary 0/1 for each level, so the coefficient for each level is only added to the model when that particular level is present for that input.

Now it will show one less level than are present in the factor because it displays the levels as referenced against a "base" level, which is factored into the intercept.

I went a bit deeper into some model info in another thread. I'll grab that link and edit my comment here with it. (It's this thread.)

Also a bit of exploration of your question further:

Just using ownership:

Call:
lm(formula = default_rate ~ poly(SAT_avg, 2) + ownership, data = train)

Residuals:
    Min      1Q  Median      3Q     Max
-6.7986 -1.3758 -0.2358  1.0202 14.9166

Coefficients:
                           Estimate Std. Error t value Pr(>|t|)
(Intercept)                   6.307      1.302   4.844 1.52e-06 ***
poly(SAT_avg, 2)1           -72.817      2.626 -27.726  < 2e-16 ***
poly(SAT_avg, 2)2            36.799      2.610  14.101  < 2e-16 ***
ownershipPrivate nonprofit   -1.215      1.307  -0.929    0.353
ownershipPublic              -1.215      1.310  -0.928    0.354
---
Signif. codes:  0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1

Residual standard error: 2.604 on 837 degrees of freedom
Multiple R-squared:   0.54,	Adjusted R-squared:  0.5378
F-statistic: 245.6 on 4 and 837 DF,  p-value: < 2.2e-16

Now using factor(ownership):

Call:
lm(formula = default_rate ~ poly(SAT_avg, 2) + factor(ownership),
    data = train)

Residuals:
    Min      1Q  Median      3Q     Max
-6.7986 -1.3758 -0.2358  1.0202 14.9166

Coefficients:
                                   Estimate Std. Error t value Pr(>|t|)
(Intercept)                           6.307      1.302   4.844 1.52e-06 ***
poly(SAT_avg, 2)1                   -72.817      2.626 -27.726  < 2e-16 ***
poly(SAT_avg, 2)2                    36.799      2.610  14.101  < 2e-16 ***
factor(ownership)Private nonprofit   -1.215      1.307  -0.929    0.353
factor(ownership)Public              -1.215      1.310  -0.928    0.354
---
Signif. codes:  0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1

Residual standard error: 2.604 on 837 degrees of freedom
Multiple R-squared:   0.54,	Adjusted R-squared:  0.5378
F-statistic: 245.6 on 4 and 837 DF,  p-value: < 2.2e-16

The coefficients stay the same. So Private for-profit is the default, and when ownership is Public, -1.215 is added to get the response.

The equation would essentially be default_rate ~ 6.307 + -72.817*SAT_avg + 36.799*SAT_avg^2 + -1.215*(Private nonprofit) + -1.215*(Public) where Private nonprofit and Public are binary variables.

jiyunson

This is a great question! Yes, this kind of model is also called an ANCOVA model but fits right into the modeling framework (same regression model notation).

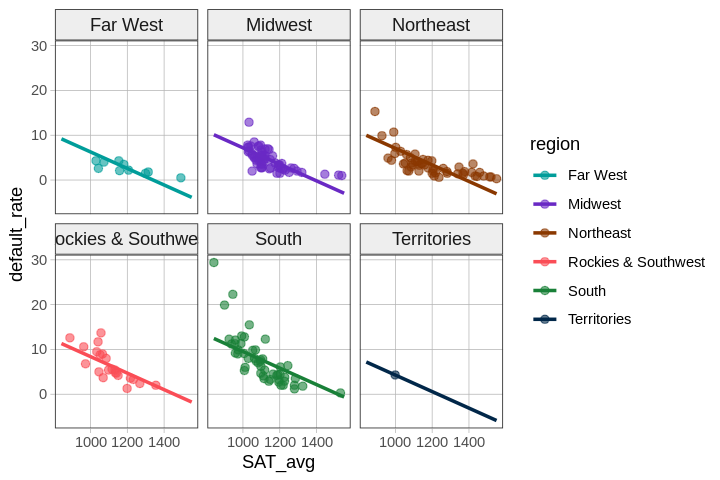

Here's some example code to help your students visualize this kind of model. You can think of it as a different line for each category value (each has a slightly different y-intercept but same slope).

# default_rate = SAT_avg + region + error

model <- lm(default_rate ~ SAT_avg + region, data = sample_dat)

gf_point(default_rate ~ SAT_avg, data = sample_dat, color = ~region) %>%
  gf_facet_wrap(~ region) %>%
  gf_model(model)

And once you know the basic idea of multivariate models, you can mix polynomial and categorical! The world is their oyster! For a polynomial + categorical kind of model, it's just a little harder to write the code to visualize... It's parallel curves! Students don't always consider that polynomial curves have a "y-intercept" but it's the same idea. Different y-intercepts for each category.

# default_rate = poly(SAT_avg,2) + region + error

model <- lm(default_rate ~ poly(SAT_avg,2) + region, data = sample_dat)
sample_dat$pred <- predict(model)

gf_point(pred ~ SAT_avg, data = sample_dat, color = ~region, alpha = 0) %>%
  gf_facet_wrap(~ region) %>%
  gf_smooth() %>%
  gf_point(default_rate ~ SAT_avg, color = ~region, alpha = .1)

If your students want more resources on these, CourseKata has an advanced stats + data sci textbook (XCD) appropriate for students who have already done AP Stats. We're also have some related PD offerings this summer (free on zoom).
